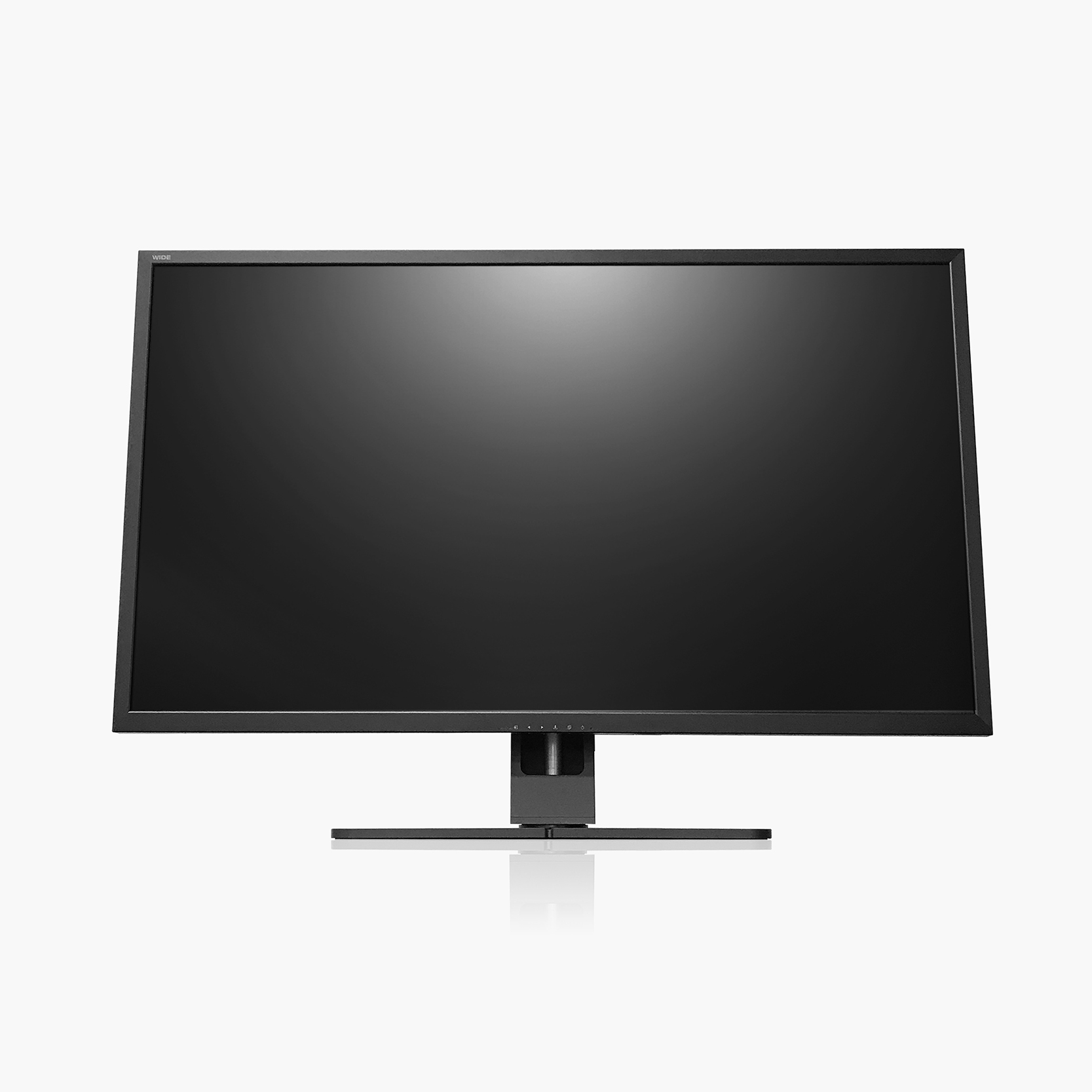

IDP4300UH

4K2K

Air Traffic Control Color Display

  • 3840 x 2160 Resolution
  • LED backlight system
  • High brightness 500cd/m²
  • SNMP supported
  • Specifications
  • Graphics Cards
Model IDP4300UH
LCD Panel TFT AMLCD Color
Native Resolution 3840(H) x 2160(V)
Pixel Pitch 0.2451mm x 0.2451mm
Active Display Area 941.2mm x 529.4mm (37.0"x20.8")
Active Screen Size (Diagonal) 1079.8mm(43")
Viewing Angle (Typ) 89˚/ 89˚/ 89˚/ 89˚ (U/D/L/R)
Brightness Max. (Typ) 500 cd/m²
Brightness Calibrated (Typ) -
Contrast Ratio (Typ) 4,000:1
Vit Rate for Look-Up Table -
Digital Video Input 2 x DP 1.2a , 2 x HDMI 2.0
Display Communication DDC2B (VESA compliance)
Universal Serial Bus (USB) N/A
Power Supply AC Input: 100-250V±10%, 50Hz-60Hz
Built-in Sensors SBC
Luminance Uniformity Control (LUC) N/A
Display Adjusstments Source, Left, Right, Enter, Menu, Power
OSD Languages English
LED Lignt (PrivateLite®) N/A
Power Consumpiton Max: 120W, Typ: 80W
Weight 16.6 kg (without stand)
23.6 kg (with stand)
Dimension 982.3mm(W) x 575.6mm(H) x 52.3mm(D) (without stand)
982.3mm(W) x 693.1mm(H) x 290.6mm(D) (with stand)
Operational Temperature 0˚C ~ 50˚C (32˚F~122˚F)
Operational Humidity 10% ~ 85%
Storage Temperature -20˚C ~ 60˚C (-4˚F~140˚F)
Certifications and Standards FCC Part 15, Class B, EN55022/EN61000-3-2/EN61000-3-3/EN55024, KC/VCCI-CISPR 32, CE&CB EN60950-1/IEC60950-1, UL60950-1
Options Remote Controller, Mechanical versions(contact us)
Model Name OS System Supported Frame Buffer Memory Bus Interface Max Resolution Output

RadeonPro WX3100

Windows 7-64-bit , Windows 10-64-bit 4GB PCI Express 3.0 5120 x 2880 DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 4096 x 2160 DisplayPort x 4

GeForce GTX1080

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 7680 x 4320 DVI x 1 , HDMI x 1 , DisplayPort x 3

Quadro P2000

Windows 7 , Windows 8.1 , Windows 10 5GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Quadro P1000

Windows 7 , Windows 8.1 , Windows 10 4GB PCI Express 3.0 4096 x 2160 Mini DisplayPort x 4

RadeonPro WX7100

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

Radeon RX580

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 3840 x 2160 DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100

Windows 7-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 5120 x 2880 DisplayPort x 4

GeForce GTX1060 (Discontinued)

Windows 7 , Windows 8.1 , Windows 10 6GB PCI Express 3.0 7680 x 4320 DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX vega56

Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit 8GB PCI Express 3.0 7680 x 4320 HDMI x 3 , DisplayPort x 3

GeForce GTX1660Ti

Windows 7 , Windows 8.1 , Windows 10 6GB PCI Express 3.0 7680 x 4320 HDMI x 1 , DisplayPort x 3

GeForce RTX2080Ti

Windows 7 , Windows 8.1 , Windows 10 11GB PCI Express 3.0 7680 x 4320 USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Quadro RTX4000

Windows 7 , Windows 8.1 , Windows 10 8GB PCI Express 3.0 7680 x 4320 USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX3100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 1 , Mini DisplayPort x 2

Quadro P4000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 4096 x 2160
Output DisplayPort x 4

GeForce GTX1080

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

Quadro P2000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 5GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Quadro P1000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 4GB
Bus Interface PCI Express 3.0
Max Resolution 4096 x 2160
Output Mini DisplayPort x 4

RadeonPro WX7100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

Radeon RX580

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 3840 x 2160
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

RadeonPro WX5100

OS System Supported Windows 7-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 5120 x 2880
Output DisplayPort x 4

GeForce GTX1060 (Discontinued)

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 6GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output DVI x 1 , HDMI x 1 , DisplayPort x 3

Radeon RX vega56

OS System Supported Windows 7-64-bit , Windows 8.1-64-bit , Windows 10-64-bit
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output HDMI x 3 , DisplayPort x 3

GeForce GTX1660Ti

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 6GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output HDMI x 1 , DisplayPort x 3

GeForce RTX2080Ti

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 11GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output USB Type-C x 1 , HDMI x 1 , DisplayPort x 3

Quadro RTX4000

OS System Supported Windows 7 , Windows 8.1 , Windows 10
Frame Buffer Memory 8GB
Bus Interface PCI Express 3.0
Max Resolution 7680 x 4320
Output USB Type-C x 1 , HDMI x 1 , DisplayPort x 3
